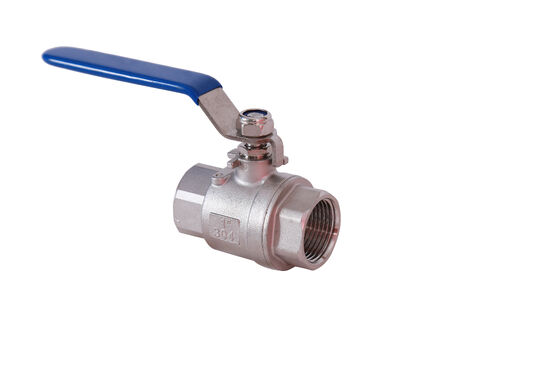

304 Stainless Steel Threaded Ball Valve with Full Port Design for Industrial Flow Control

  • 304 Stainless Steel Threaded Ball Valve with Full Port Design for Industrial Flow Control
Miejsce pochodzenia Chiny
Nazwa handlowa YOUWEI

Skontaktuj się ze mną o darmowe próbki i kupony.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Jeśli masz jakiekolwiek obawy, oferujemy 24-godzinną pomoc online.

x
Szczegóły Produktu
Tworzywo Odlew, mosiądz, stal nierdzewna, żeliwo sferoidalne, GGG40 Rozmiar portu DN50-DN1200, standardowe, 2"-24"
Moc Ręczny, uruchamiany elektrycznie, hydrauliczny, obsługiwany kołem ręcznym, GO Ciśnienie Średnie ciśnienie, niskie ciśnienie, PN10-16, PN1.0/PN1.6, 250PSI
Temperatura mediów Średnia temperatura, normalna temperatura, niska temperatura, -10 ~ 100 ℃ Głoska bezdźwięczna Woda, olej itp., Gaz i tak dalej
Aplikacja Ogólne, nawadnianie, dystrybucja wody, przemysł, systemy wodne Struktura Piłka
Standardowe lub niestandardowe Standard Nazwa produktu zasuwa elektryczna, żeliwna elektryczna zasuwa z niewznoszącym się trzpieniem DN40-DN600, DIN/BS z p
Standard DIN,BS,JIS,F5;AWWA C509/C515;ANSI,DIN3352 Rozmiar DN40-DN600, DN50 ~ DN 1000,2''-24'',DN15 do 100
Połączenie Gwintowane, BSP, końcówki gniazdowe, gwint żeński Materiał korpusu Żeliwo sferoidalne, DI/CI, DI, żeliwo, mosiądz
Kolor Niebieski, na życzenie klienta, na życzenie klienta, żółty, SZARY Średni Woda, woda, olej gazowy
Typ Zawór kulowy, normalnie otwarty, 2-drogowy, trzpień niewznoszący/NRS Typ zaworu Zawór kulowy
Foka wyłożona gumą, metal, PTFE
Podkreślić

304 Stainless Steel Ball Valve

,

Threaded Ball Valve

,

Full Port Ball Valve
Zostaw wiadomość
opis produktu
304 Threaded Ball Valve
The 304 Threaded Ball Valve is a high-performance industrial valve designed for reliable on/off and flow control in a wide range of fluid handling applications. Constructed from corrosion-resistant 304 stainless steel, this valve is suitable for use with water, oil, gas, steam, and mild chemical media.
Product Overview
This threaded ball valve features screwed ends that allow for easy installation without welding, making it ideal for maintenance, retrofit, and modular piping systems.
Key Features
  • Material Excellence: Made from AISI 304 stainless steel, offering excellent corrosion resistance, durability, and hygiene for demanding environments.
  • Full Port Design: Provides minimal flow restriction, low pressure drop, and superior flow capacity.
  • Threaded Connections: NPT or BSPP threads ensure secure, leak-free installation and easy integration into existing pipelines.
  • Quick Operation: Quarter-turn (90°) handle allows for fast opening and closing, improving operational efficiency.
  • Robust Sealing: PTFE or reinforced PTFE seats ensure tight sealing, long service life, and compatibility with various media.
  • Compact & Lightweight: Easy to handle, install, and maintain, even in tight spaces.
  • Multi-Application Suitability: Suitable for industrial, commercial, HVAC, water treatment, and food processing systems.
Technical Specifications
Specification Details
Body Material 304 Stainless Steel (AISI 304 / CF8)
Seat Material PTFE, RPTFE, or optional PPL / metal seated versions
Connection Type Threaded (NPT, BSPT, BSPP available)
Size Range ¼" to 4" (DN8 to DN100)
Pressure Rating Class 150 / PN16 (higher ratings available upon request)
Temperature Range -20°C to 200°C (depending on seat material)
Operation Manual lever, gear-operated, or actuator-ready
Standards Compliance ISO, ANSI, DIN, JIS, or as customized
Applications
  • Industrial process lines (chemical, petrochemical, pharmaceutical)
  • Water supply and treatment systems
  • HVAC, refrigeration, and heating circuits
  • Food, beverage, and dairy processing
  • Compressed air and gas pipelines
  • Marine and shipbuilding applications
  • General plumbing and instrumentation systems
Installation & Maintenance
Ensure threads are clean and properly sealed with thread tape or sealant. Align valve orientation according to flow direction (if marked). Avoid over-tightening to prevent thread damage. Periodically check for leaks and operate the valve to maintain seat flexibility.
Benefits
Corrosion-Resistant: Ideal for humid, corrosive, and sanitary environments.
Easy to Install: No welding required, reducing installation time and cost.
Reliable Performance: Durable construction ensures long-term, leak-free service.
Versatile Use: Compatible with a wide range of media and industries.
