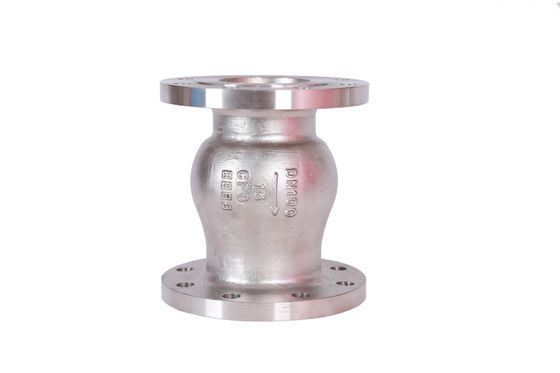

304 Stainless Steel Silent Check Valve with Non-Slam Closure and Low Head Loss for Corrosive Applications
| Miejsce pochodzenia | Chiny |
|---|---|
| Nazwa handlowa | YOUWEI |
Skontaktuj się ze mną o darmowe próbki i kupony.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
Jeśli masz jakiekolwiek obawy, oferujemy 24-godzinną pomoc online.
xSzczegóły Produktu
| Tworzywo | Odlew, mosiądz, stal nierdzewna, żeliwo sferoidalne, GGG40 | Rozmiar portu | DN50-DN1200,standardowe,2"-24",DN50-800,3/4" |
|---|---|---|---|
| Moc | Ręczny, uruchamiany elektrycznie, hydrauliczny, obsługiwany kołem ręcznym, GO | Ciśnienie | Średnie ciśnienie, niskie ciśnienie, PN10-16, PN1.0/PN1.6, 250PSI |
| Temperatura mediów | Średnia temperatura, normalna temperatura, niska temperatura, -10 ~ 100 ℃ | Głoska bezdźwięczna | Woda, olej itp., Gaz i tak dalej |
| Aplikacja | Ogólne, nawadnianie, dystrybucja wody, przemysł, systemy wodne | Struktura | Zasuwa, motylek, zasuwa niewznosząca się |
| Standardowe lub niestandardowe | Standard | Nazwa produktu | zasuwa elektryczna, żeliwna elektryczna zasuwa z niewznoszącym się trzpieniem DN40-DN600, DIN/BS z p |
| Standard | DIN,BS,JIS,F5;AWWA C509/C515;ANSI,DIN3352 | Rozmiar | DN40-DN600, DN50 ~ DN 1000,2''-24'',DN15 do 100 |
| Połączenie | Końcówki kołnierzowe, kołnierze podwójne, BSP, końcówki gniazdowe, gwint wewnętrzny | Materiał korpusu | Żeliwo sferoidalne, DI/CI, DI, żeliwo, mosiądz |
| Kolor | Niebieski, na życzenie klienta, na życzenie klienta, żółty, SZARY | Średni | Woda, woda, olej gazowy |
| Typ | Zawór odcinający, normalnie otwarty, 2-drogowy, trzpień niewznoszący/NRS | Typ zaworu | Zasuwa |
| Foka | wyłożona gumą, metal, PTFE | ||
| Podkreślić | 304 Stainless Steel Silent Check Valve,Silent Non-Slam Closure Check Valve,Low Head Loss Check Valve |
||
opis produktu
304 Silent Check Valve
Product Overview
The 304 Silent Check Valve is an advanced, hydraulically optimized check valve engineered to prevent reverse flow without water hammer, shock noise, or disc slamming. Featuring a streamlined axial or tilting disc design, it ensures smooth, silent, and reliable operation in systems where noise, pressure surge, and valve wear are critical concerns. Constructed entirely from 304 stainless steel, it is ideal for corrosive, hygienic, and demanding fluid handling applications.
Key Features
- Silent, Non-Slam Closure: Unique internal design with spring-assisted or lever-weighted mechanism ensures gradual, shock-free closure even under fluctuating flow conditions.
- 304 Stainless Steel Construction: Excellent corrosion resistance, durability, and hygiene compliance for chemical, marine, food, and pharmaceutical industries.
- Low Head Loss: Streamlined flow path and optimized disc geometry minimize pressure drop and improve system efficiency.
- Maintenance-Friendly Design: In-line repairable models allow for seat and spring replacement without removing the valve body from the pipeline.
- Versatile Mounting: Can be installed in horizontal or vertical pipelines (flow direction upward).
- Long Service Life: Precision-machined seating surfaces and corrosion-resistant materials ensure reliable sealing and extended durability.
Technical Specifications
| Body & Trim Material | AISI 304 Stainless Steel |
| Seat Seal | EPDM, NBR, FKM, or PTFE (optional) |
| Spring Material | 304 or 316 Stainless Steel |
| Connection Types | Threaded (NPT/BSP), Flanged (ANSI/DIN), or Wafer |
| Size Range | ½" to 24" (DN15 to DN600) |
| Pressure Rating | Class 150 / PN16 to Class 300 / PN40 |
| Temperature Range | -20°C to +120°C (w/ elastomeric seals) | Up to 400°C (all-metal design) |
| Compliance | API 594, API 6D, ISO 5208, or as customized |
Applications
- Water & wastewater treatment plants
- HVAC, pumping stations, and booster systems
- Chemical, petrochemical, and process industries
- Marine & offshore piping systems
- Food, beverage, and pharmaceutical processing
- Fire protection and irrigation systems
Operation Principle
The valve utilizes a guided disc and a calibrated spring (or lever-counterweight) to control the closing motion. As forward flow decreases, the spring gently returns the disc to the seat before reverse flow occurs, eliminating sudden closure and associated hydraulic shock.
Benefits
- No Water Hammer: Protects pipelines, pumps, and equipment from pressure surges.
- Quiet Operation: Ideal for noise-sensitive environments such as buildings and hospitals.
- Energy Efficient: Reduced pressure loss lowers pumping costs.
- Low Maintenance: Non-slamming action drastically reduces wear on sealing surfaces.
- Safe & Reliable: Prevents backflow contamination and system failure.
Installation Notes
• Ensure proper flow direction alignment with valve arrow.
• Support the valve appropriately to avoid pipeline stress.
• For vertical installation, confirm valve orientation suitability with manufacturer.
• Recommend installing downstream of pumps or system outlets where flow reversal risk exists.
